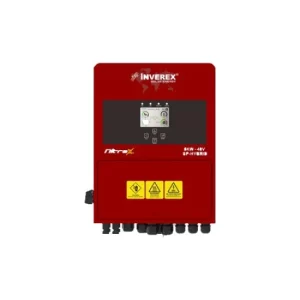

Inverex Nitrox 6KW

Inverex Nitrox 6 KW Single Phase Solar Inverter Price In Pakistan is PKR. 470,000.

Inverex Nitrox 6 KW Single Phase Solar Inverter Price in Pakistan is 470,000/. This is one of the leading solar companies in Pakistan. They provide a lot range of customized integrated solar solutions and home products to different sectors. The manufacturing and suppling plant is in China. Mr. Zakir Ali is the owner of Inverex. Inverex Invertor provide the power to various appliances in home or office environment. Including motor type appliances such as Air conditioner, refrigerator, light, fan etc. It is the compaitble with Inverex Power Cube. IP65 water proof design, resistance to bad weather, enhance stability.

•  Size: 330W X 433H X 238D
• Volts: 48V
• Transfer Time: 4 Ms
• Protection Degree: IP 65
• Noise: 30 db
• Phase: Single Phase
• Type:  Hybrid Solar Inverter
• Weight: 14 Kg

Specification

Model:  Nitrox Hybrid 6 KW SP-48V

Battery Input

Type: Lead-acid or Li-ion

Voltage Rang(V): 40-60

Max. Charging Current(A): 135

Max. Discharging Current (A): 135

External Temperature Sensor: Optional

Charging Curve: 3 Stages/Equalization

Charging Strategy for Li-Ion Battery: Self-adaption to BMS

Physical

Dimensions

Width: 330mm

Height 433m

Depth: 238mm

Weight: 14Kgs

PV String Input Data

Max. DC Input Power(W): 7800W
Rated PV Input Voltage (V): 370 (125-500)

Start-Up Voltage (V): 125

MPPT Voltage Range (V): 150-425

Full Load DC Voltage Range (V): 300-425

PV Input Current (A): 13+13A

Max. PV ISC (A): 17+17A

No. of MPPT/Strings per MPPT: 2/1+1

AC Output Data

Rated AC Output and UPS Power(W): 6000

Max. AC Output Power (W): 6600

AC Output Rated Current (A): 27.3/26.1A

Max. AC Current (A): 40

Peak Power (Off Grid): 2 times of rated power, 10 S

Power Factor: 0.8 leading to 0.8 lagging

Output Frequency and Voltage: 50/60 Hz, 220V/187V-242V, 230V/195.5V-253V

Grid Type: Single Phase

DC Injection Current(mA): THD<3%(Liner load <1.5%)

Max. Efficiency: 97.6%

Euro Efficiency: 96.5%

MPPT Efficiency: >99%

Transfer Time: 4ms

Protection

Integrated:  PV Arc Full Dedication, PV Input Lighting Protection, Anti-islanding Protection, Surge Protection, Over Current Protection

Certification and Standards

Grid Regulation: EN505549, AS4777.2, VDEO126, IEC61727, VDEN4105, G99, NBT32004

General

Operating Temperature Range (◦C): -45◦-60◦C, >45◦C derating

Cooling: Smart cooling

Noise(dB): <30dB

Communication with BMS: RS485; CAN

Protection Degree: IP65

Installation Style: Wall-Mounted

Warranty: 5 Years (T&C)

Check out more Inverex solar inverters.
