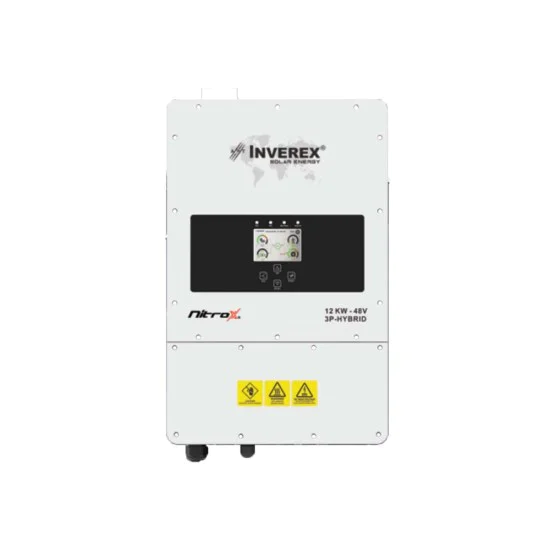

INVEREX NITROX 12 KW

Inverex Nitrox 12 KW Three Phase Hybrid Solar Inverter Price in Paksitan is 1,000,000.

Inverex Nitrox 12 KW 48V Three Phase Hybrid Solar Inverter Price in Pakistan is 11,20,000/. This is one of the leading solar companies in Pakistan. They provide a lot range of customized integrated solar solutions and home products to different sectors. The manufacturing and suppling plant is in China. Mr. Zakir Ali is the owner of Inverex. This Invertor provide the power to various appliances in home or office environment. Including motor type appliances such as Air conditioner, refrigerator, light, fan etc. It is compatible with Inverex Power Cube. Also, it has the external light indicator, Easy to use just plug and play and it is very easy to install.

•  Size: 422W X 699.3 X 279D
• Efficiency: 97%
• Transfer Time: 4 Ms
• Weight: 33.6 Kg
• DC Input Power: 15600W
• Frequecy Range: 50 HZ / 60 HZ
• Voltage:  48V
• Phase: 3
• Type: 3 Phase Hybrid Solar Inverter

Specifications

Model:  Nitrox Hybrid 12 KW 3P-48V

Battery Input Data

Type: Lead-acid or Li-ion

Voltage Rang(V): 40-60

Max. Charging Current(A): 240

Max. Discharging Current (A): 240

External Temperature Sensor: Yes

Charging Curve: 3 Stages/Equalization

Charging Strategy for Li-Ion Battery: Self-adaption to BMS

Physical

Dimensions

Width: 422mm

Height 699.3mm

Depth: 279mm

Weight: 33.6Kgs

PV String Input Data

Max. DC Input Power(W): 15600W
Rated PV Input Voltage (V): 550 (160-800)

Start-Up Voltage (V): 160

MPPT Voltage Range (V): 200-650

PV Input Current (A): 26+13A

Max. PV ISC (A): 34+17A

No. of MPPT/Strings per MPPT: 2/2+1

AC Output Data

Rated AC Output and UPS Power(W): 12000

Max. AC Output Power (W): 13200

AC Output Rated Current (A): 18.2/17.4A

Max. AC Current (A): 27.3/26.1A

Max. Continues AC Passthrough (A): 50

Peak Power (Off Grid): 2 times of rated power, 10 S

Power Factor: 0.8 leading to 0.8 lagging

Output Frequency and Voltage: 50/60 Hz; 380/400Vac (Three Phase)

Grid Type: Three Phase

DC Injection Current(mA): THD<3% (Liner load <1.5%)

Efficiency

Max. Efficiency: 97.6%

Euro Efficiency: 97%

MPPT Efficiency: >99%

Transfer Time: 4ms

Protection

Integrated:  PV Arc Fault Dedication, PV Input Lighting Protection, Anti-islanding Protection, Surge Protection, Over Current Protection

Certification and Standards

Grid Regulation: EN50549, AS4777.2, VDEO126, IEC61727, VDEN4105, G99, NBT32004

Safety EMC/Standard: IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4

General

Operating Temperature Range (◦C): -45◦-60◦C, >45◦C derating

Cooling: Smart cooling

Noise(dB): ≤45 dB(A)

Communication with BMS: RS485; CAN

Protection Degree: IP65

Installation Style: Wall-Mounted

Warranty: 5 Years (T&C)

Check out more Inverex solar inverters.
